方形百葉式電動氣流調節閥
百葉式手動氣流調節器是公司引進日本技術的基礎上，消化研制的一種新型節能的高效產品。適用于建材、玻璃、礦山、電力、輕工、造紙等行業的風機進口及通風管道，對管道中流量根據工況的不同需要進行調節。
結構特點
百葉式手動氣流調節器設計新穎結構合理，調節板采用多葉、多軸式，使氣流均勻分流，流阻小，啟閉力矩小，動作靈活可靠，各傳動部位采用軸承，運轉靈活，摩擦系數小調節輕松自如，能有效地控制氣體流量，充分利用能源使工作系統達到l理想狀態，是各種風管系統中理想的氣流調節設備。
性能參數
|
公稱壓力 |
介質流速 |
泄漏率 |
適用溫度 |
適用介質 |
|
0.05MPa |
≤30m/s |
≤1.5% |
≤300℃ |
空氣、粉塵氣體等 |
型號說明

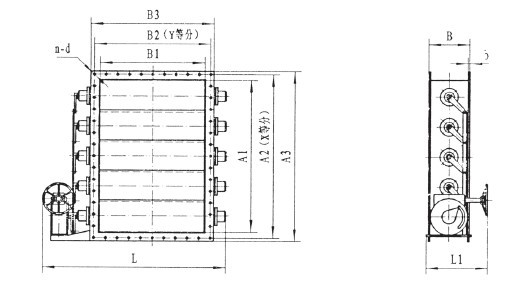

TESB-0.5C外形圖
TESB-0.5C外形連接尺寸
|
A1xA2 |
A2x82 |
A3xB3 |
B |
b |
n-d |
X |
Y |
L |
L1 |
|
320x180 |
355x215 |
380x240 |
180 |
6 |
10-Φ10 |
3 |
2 |
680 |
275 |
|
320x250 |
355x285 |
380x310 |
180 |
6 |
12-Φ10 |
3 |
3 |
750 |
275 |
|
400x200 |
445x245 |
480x280 |
200 |
8 |
12-Φ12 |
4 |
2 |
710 |
275 |
|
400x320 |
445x365 |
480x400 |
200 |
8 |
14-Φ12 |
4 |
3 |
820 |
275 |
|
500x200 |
545x245 |
580x280 |
220 |
8 |
14-Φ12 |
5 |
2 |
710 |
275 |
|
500x400 |
545x445 |
580x480 |
220 |
8 |
18-Φ12 |
5 |
4 |
910 |
275 |
|
630x320 |
675x365 |
710x400 |
220 |
8 |
18-Φ12 |
6 |
3 |
820 |
275 |
|
630x400 |
675x445 |
710x480 |
220 |
8 |
20-Φ12 |
6 |
4 |
910 |
275 |
|
800x400 |
845x445 |
880x480 |
240 |
8 |
22-Φ12 |
7 |
4 |
910 |
365 |
|
800x630 |
845x675 |
880x710 |
240 |
8 |
26-Φ12 |
7 |
6 |
1130 |
365 |
|
1000x500 |
1055x555 |
1100x600 |
260 |
10 |
26-Φ14 |
8 |
5 |
1020 |
365 |
|
1000x800 |
1055x855 |
1100x900 |
260 |
10 |
30-Φ14 |
8 |
7 |
1300 |
365 |
|
1250x630 |
1305x685 |
1350x730 |
280 |
10 |
32-Φ14 |
10 |
6 |
1130 |
365 |
|
1250x1000 |
1305x1055 |
1350x1100 |
280 |
10 |
36-Φ14 |
10 |
8 |
1530 |
365 |
|
1400x800 |
1456x855 |
1500x900 |
300 |
10 |
38-Φ14 |
12 |
7 |
1330 |
365 |
|
1400x1250 |
1455x1305 |
1500x1350 |
300 |
10 |
44-Φ14 |
12 |
10 |
1780 |
365 |
|
1600x1000 |
1655x1055 |
1700x1100 |
320 |
10 |
42-Φ14 |
13 |
8 |
1530 |
365 |
|
1600x1250 |
1655x1305 |
1700x1350 |
320 |
10 |
46-Φ14 |
13 |
10 |
1780 |
365 |
|
1800x1250 |
1865x1315 |
1920x1370 |
340 |
12 |
46-Φ18 |
13 |
10 |
1880 |
480 |
|
1822x1400 |
1865x1465 |
1920x1520 |
340 |
12 |
50-Φ18 |
13 |
12 |
2030 |
480 |
|
2000x1250 |
2065x1315 |
2120x1370 |
360 |
12 |
50-Φ18 |
15 |
10 |
1880 |
480 |
|
2000x1800 |
2065x1865 |
2120x1920 |
360 |
12 |
56-Φ18 |
15 |
13 |
2430 |
480 |
|
2500x1800 |
2565x1865 |
2620x1920 |
420 |
12 |
60-Φ18 |
17 |
13 |
2430 |
540 |
|
2500x2000 |
2565x2065 |
2620x2120 |
420 |
12 |
64-Φ18 |
17 |
15 |
2E30 |
540 |
|
2800x2500 |
2870x2570 |
2930x2630 |
440 |
16 |
72-Φ22 |
19 |
17 |
3130 |
540 |
|
3200x2800 |
3270x2870 |
3330x2930 |
480 |
16 |
80-Φ22 |
21 |
18 |
3430 |
600 |
|
3600x3200 |
3670x3270 |
3730x3330 |
520 |
16 |
88-Φ22 |
23 |
21 |
3830 |
600 |
|
4000x3600 |
4070x3670 |
4130x3730 |
520 |
16 |
100-Φ22 |
27 |
23 |
4230 |
600 |
